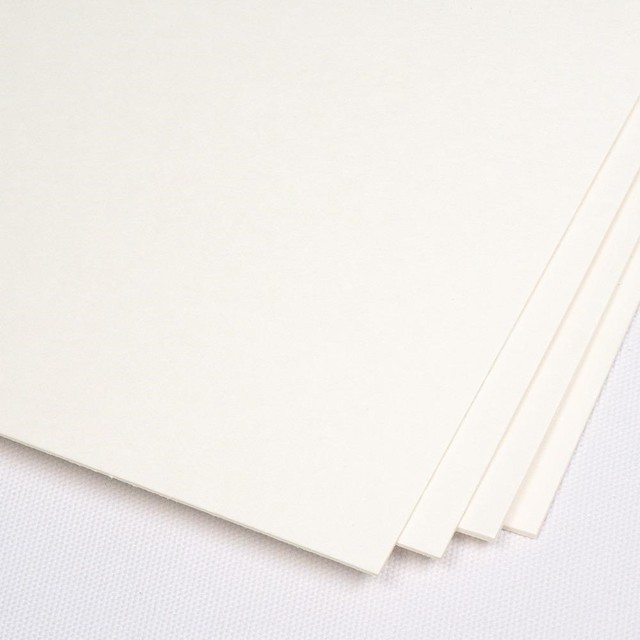

Royal Board Paper

770mm * 530mm

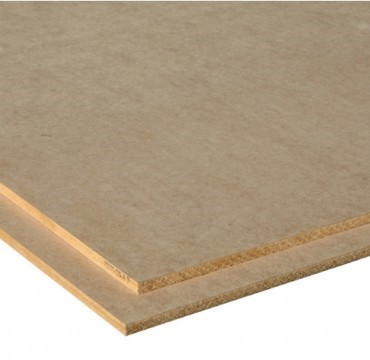

Synthetic Plywood

600mm * 400mm

Step. 1

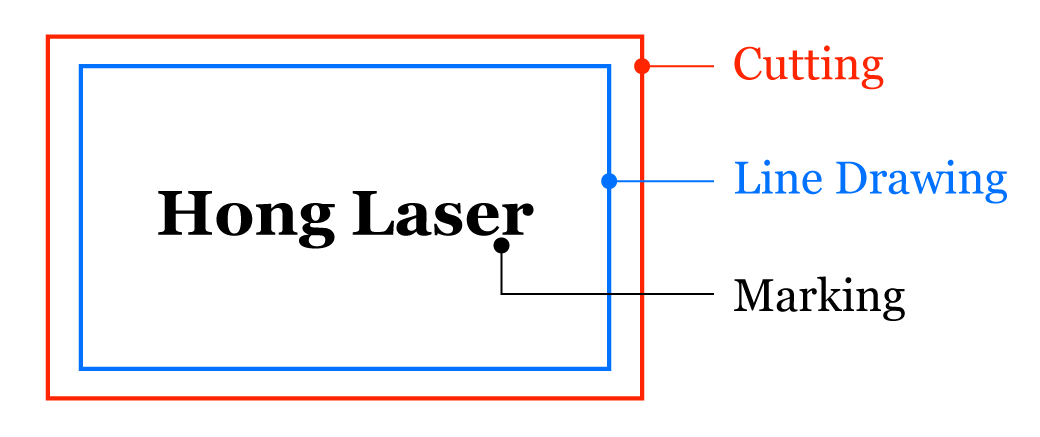

Work on each color separately.

“Marking → Line Drawing → Cutting sequence”, please group by color.

Step. 2

• Draw a square box and fill it with the design drawings.
• Please arrange with at least 5mm margin from the edges of the material.
• The spacing between designs (objects) can vary slightly depending on the material used.
• When using the end parts of the material, proceed considering possible errors; there might be a minor deviation of 1-2 mm.

Step. 3

• Text fonts outlines
  If a font not available at the workshop is used, when the workshop opens the file, it may appear in a completely different font.
  Please send the font after ‘breaking’ for editing.

• Handle double lines as single lines (using Overkill, Stroke).

  If there are duplicate lines, the laser will pass over the same line twice!

  Ensure there is only one line to avoid extra time and cost

Step. 4

Save and upload the work file in one of the following formats:

Adobe Illustrator (CS5), CorelDRAW (X5), or AutoCAD (2010 or earlier).
